Alnico Bar Magnet Ø 17 mm - 16 mm in red steel body with internal thread M6 x 5 - holds 2,6 kg
Verwendung zum Festhalten, Heben, sowie zum Einbau in Vorrichtungen - Beständigkeit gegen hohe Temperaturen
Stabmagnetsystem für den Hochtemperatureinsatz bis 180°C
"Über 300.000 Zufriedene Kunden"

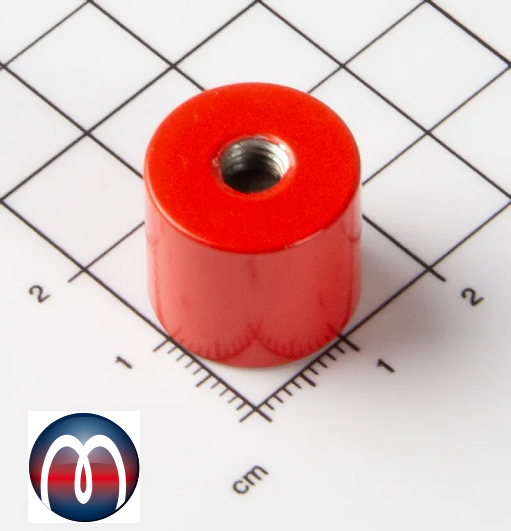

AlNiCo bar magnet in red lacquered steel body with an internal thread. High working temperatures and excellent gripping and holding abilities makes the magnet ideal for industrial applications where both function and design are decisive parameters.

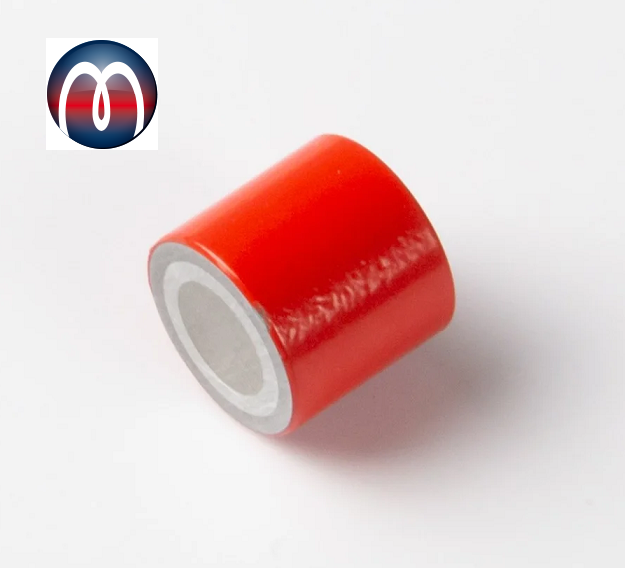

An AlNiCo magnet is enclosed in the steel body where it lays well protected against outer impacts. This leaves the bar magnet with only one active magnet side while an internal thread is mounted on the other side. The bar magnet is a strong and durable product.
Product features
- Alnico Bar Magnet Ø 17 mm - 16 mm in red steel body with internal thread M6 x 5 - holds 2,6 kg

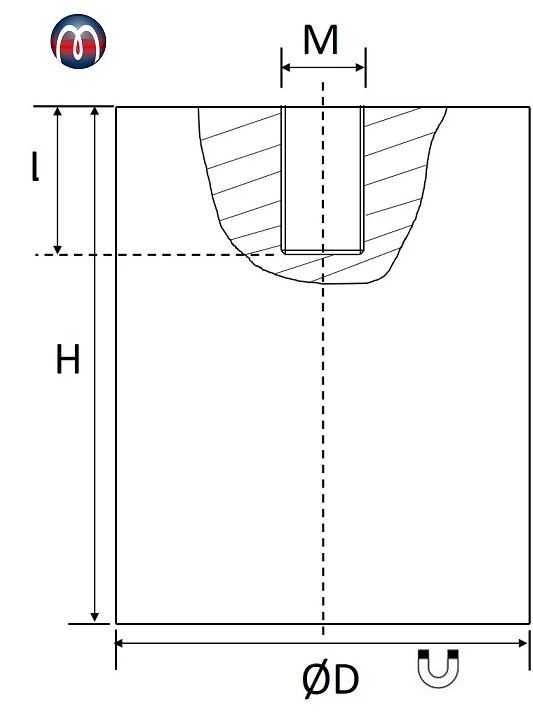

- Diameter ØD (mm) 17
- Height (mm) 16
- Thread size M M6
- Thread length l (mm) 4
- Adhesive force (N) 27
- Magnetic material AlNiCo
- Design with internal thread
- Housing material steel
- Color red
- Temperature resistance (°C) 180
- Weight (kg) 0.03 kg
| Item number | D mm | H mm | Thread MxL | Force* N | Weight g | Temperature °C | |
|---|---|---|---|---|---|---|---|
| 2515 | 12.5+0.2/-0.2 | 16+0.2/-0.2 | M4x6 | 20 | 15 | 180 | |
| 2516 | 17+0.2/-0.2 | 16+0.2/-0.2 | M6x5 | 26 | 29 | 180 | |
| 2517 | 21+0.2/-0.2 | 19+0.2/-0.2 | M6x7 | 40 | 50 | 180 | |
| 2518 | 27+0.2/-0.2 | 25+0.2/-0.2 | M6x8 | 65 | 98 | 180 | |
| 2519 | 35+0.2/-0.2 | 30+0.2/-0.2 | M6x9 | 150 | 205 | 180 |
Note on adhesive force
The adhesive forces determined by us were determined at room temperature on a polished plate made of steel S235JR (ST37) with a thickness of 10 mm with the magnet pulled off vertically (1kg~10N). A deviation of up to -10% compared to the specified value is possible in exceptional cases.
Classy look and high-quality material
Thanks to the elegant look of our Alnico Bar Magnet in red steel body with internal thread, they can be placed where they are clearly visible.
REACH RoHS Directive
This article complies with the European RoHS directive (2002/95/EG - RoHS - Restriction of Hazardous Substances) for the restriction of the use of certain hazardous substances in electrical and electronic equipment. Corresponds to the European RoHS directive, is PVC and plasticizer-free and REACH-compliant - classified according to the German flame retardant standard DIN 4102 / B1
Technical specifications:
| Product Code: | 2516 |
| Pack Size: | piece |
| Shape: | Holding Magnet |
| Magnetic Face | 17 mm |
| Material magnet: | AlNiCo |
| Material housing: | Steel |
| Vertical Pull (Kg): | 2,6 kg |
| Color: | red lacquered |
| Max Temp C: | 180° C |
| Item ID | 2516 |
| Condition | New |
| Age rating | No age restriction |
| Variation ID | 10428 |
| Manufacturer | Magnosphere |
| Manufacturing country | Germany |
| Weight | 0 g |
| Net weight | 0 g |
