Magnet Formwork Magnetic Shuttering System 280 x 60 x 40 mm (LxBxH) - holds 900 kg

Magnets provide a powerful, versatile magnetic system for concrete formwork

Formwork magnets can be used in precast concrete plants to secure formwork during concreting

"Over 300,000 satisfied customers"

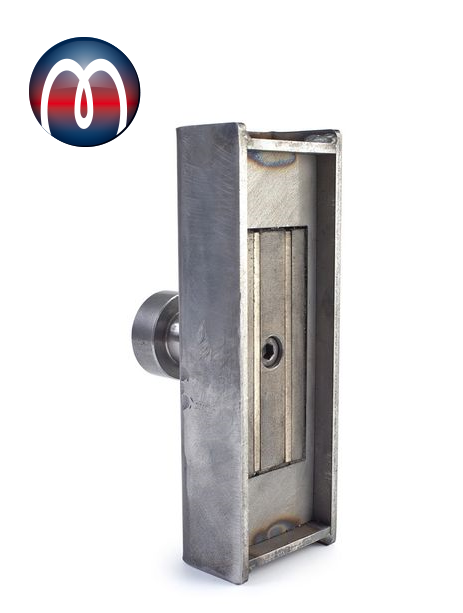

The formwork magnet consists of a steel housing so as not to damage the internal magnet system with neodymium magnets. Use the central push button to press the magnet onto a metal surface to hold it. You can then use a release lever to release the magnet from the ground (adhesive surface).

The built-in steel springs hold the magnet to the top of the metal housing so that the magnet does not stick on by itself. The bottom of the magnet box is closed, which prevents the internal mechanism from becoming dirty.

Product features - 4.9 out of 5 stars ⭐⭐⭐⭐⭐

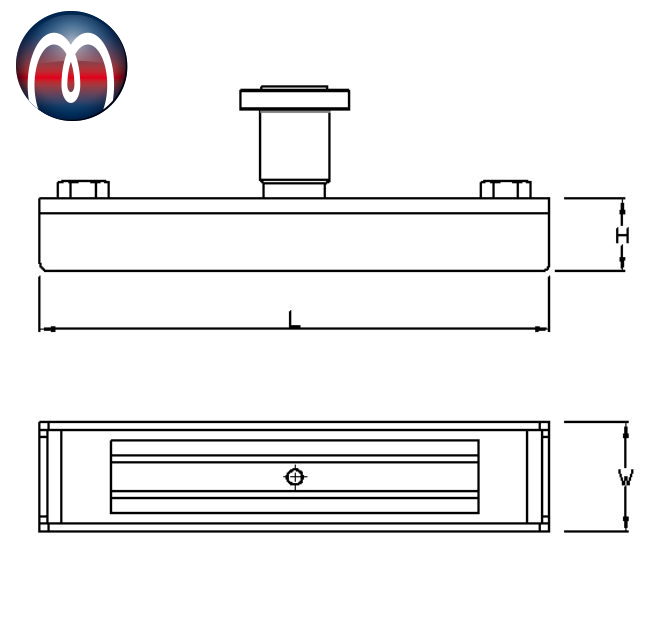

• Dimensions: 280 x 60 x 40 mm (LxWxH)
• Strength: approx. 900 kg
• Weight approx. 3.4 kg

Magnet Formwork Magnetic Shuttering System

Note on adhesive force

The adhesive forces determined by us were determined at room temperature on a polished plate made of steel S235JR (ST37) with a thickness of 10 mm with the magnet pulled off vertically (1kg~10N). A deviation of up to -10% compared to the specified value is possible in exceptional cases.

Classy look and high-quality material

Thanks to the elegant look of our Magnet Formwork Magnetic Shuttering System 280 x 60 x 40 mm (LxBxH) - holds 900 kg, they can be placed where they are clearly visible.

REACH RoHS Directive

This article complies with the European RoHS directive (2002/95/EG - RoHS - Restriction of Hazardous Substances) for the restriction of the use of certain hazardous substances in electrical and electronic equipment. Corresponds to the European RoHS directive, is PVC and plasticizer-free and REACH-compliant - classified according to the German flame retardant standard DIN 4102 / B1
